Optimize Space with Conveyor Elevations and Line Egress Solutions
Optimize Space with Conveyor Elevations and Line Egress Solutions

Article from | Dorner Conveyors

Why Systems Need to Be Flexible

Modern manufacturing requires facilities to maximize efficiency and ensure product quality. However, space limitations can impede these goals.

Integrating elevations and line egress solutions from Dorner will grant your facility the flexibility it needs to succeed.

  • Provide More Floor Space. Because space is such a desired and important feature of modern manufacturing facilities, Dorner conveyor solutions strive to free up floor space and allow your operations to proceed unhindered.
  • Offer Easier Access to Machinery. Using elevation and line egress systems for your conveying needs provides easier access to other machinery, improving efficiency and ensuring personnel can work more effectively.
  • Simplify Processes. At Dorner, we strive to design and develop conveyor solutions that cooperate with and enhance your existing processes, ensuring that you can achieve optimal performance.



Types of Elevation and Line Egress Systems

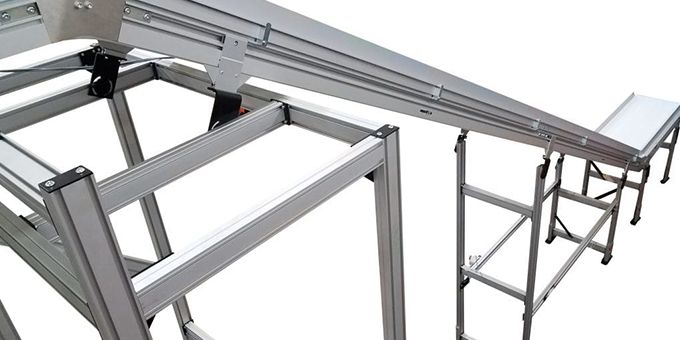

Image of a lift gate conveyor demonstrating its ability to adjust and make room for walk-thru access and other line egress solutions.



Vertical Elevation Conveyors

1. Flexible Chain Conveyors.

Flexible chain conveyors, like the FlexMove Helix and Alpine models, are capable of making tight turns and steep inclines for optimal efficiency and space-saving functionality. Using flexible chain conveyors can limit the number of conveyor belts your facility requires thanks to custom infeed and outfeed lengths.

2. Z-Frame Conveyors.

Designed with one or two pivot points, Z-Frame conveyors are among the most well-known elevation solutions for manufacturing facilities. Z-Frame conveyors, also referred to as low profile z-frame (LPZ) conveyors, effectively free up floor space and enable the production process to navigate around obstacles such as other machines.

3. Belt Over Belt Conveyors.

When in need of an elevation or line egress solution, you should consider the products you are manufacturing and moving to ensure product safety and quality. For soft, flexible, or unevenly-shaped products, belt over belt conveyors are often more effective.

4. Wedge Conveyors.

Similar to the belt over belt conveyor, the wedge conveyor uses cleated chains to grip products on either side to lift or lower them. Wedge elevators can be custom-built to accommodate products of varying shapes and sizes.

5. Vertical Belt Technology.

When products need to be moved in 90° sanitary applications, vertical belt technology is notably effective. The proprietary staggered sidewall belt provides more pocket capacity, improved product release, and reduced product loss. With an open design, vertical belt solutions are easy to clean, as well.

Learn more about Dorner’s Elevation and Line Egress Conveyors on the Solutions page.
