ATX West and IME West 2022 takes place April 12th - 14th in Anaheim, California. The Exhibit hall floor will be loaded with new products and services. Here is a preview of some things to look forward to at this years event.

ATX West and IME West 2022 Product Preview
ATX West and IME West 2022 Product Preview

Article from | RoboticsTomorrow

ATX West & IME West 2022 Product Preview

Check out our Special Newspage here

Featured Products

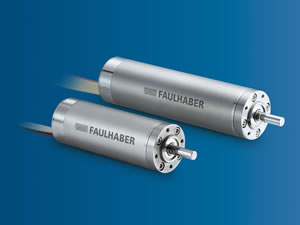

Faulhaber Compact powerhouse for demanding applications

ATX West Booth #2321

The 1645... BHS brushless DC servomotor from FAULHABER is setting the bar in its class with an extremely short response time, high speed and large permissible radial load. The successful BHx series with a diameter of 16 mm is thus further expanded by an even more compact version which is only 45 mm long. And much like the rest of the product range, this extremely powerful BLDC motor is also characterised by low vibration and heat development. It is therefore predestined for applications that demand a lot of power and offer little space.

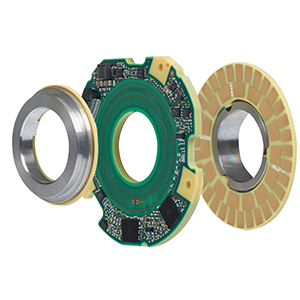

HEIDENHAIN - Innovative Dual Encoders for Robots

ATX West Booth #4548

Robust design

Thanks to their robust inductive scanning method, the KCI 120 Dplus rotary encoders are particularly resistant to contamination and magnetic fields. Their rigid design permits high vibration loads of up to 400 m/s² on the stator and 600 m/s² on the rotor.

Functional safety

The rotary encoders of this series are available with functional safety and a functionally safe mechanical connection. Once integrated into an application with up to SIL 3 safety, they minimize malfunctions and facilitate the safe operation of machines and automated systems.

2D position measurement

KCI 120 Dplus series rotary encoders permit wide mounting tolerances of ±0.3 mm for Encoder A and ±0.5 mm for Encoder B. The circular scales are simply press-fitted onto the motor shaft and output shaft, thus permitting fast and easy installation.

Compact design

The KCI 120 Dplus unites two rotary encoders in a single device, offering high reliability in a rugged and extremely compact design. Thanks to its low 20 mm profile, this series is great for tight installation spaces.

The ERT150 - Dorner’s Next Evolution of Edge Roller Technology Conveyors

WestPack Booth #5014

The next evolution in Dorner’s Edge Roller Technology conveyor platform, the ERT®150, is ideal for small and light-load assembly automation, as well as medical and medical-device assembly application. The ERT platform is the only pallet conveyor of its kind available with an ISO Standard Class 4 rating for cleanroom applications. Earning the ISO Standard 14644-1 Class 4 rating means Dorner’s ERT150 will conform and not contribute to the contamination of cleanrooms to those standards.

As implied by its name, the ERT150 (Edge Roller Technology) uses rollers to move pallets through the conveyor smoothly with no friction (a byproduct often seen in belt-driven platforms). The conveyor’s open design eliminates concerns of small parts or screws dropping into rollers and causing conveyor damage or jamming.

The ERT150 is suited to operate in cleanroom environments requiring a pallet handling conveyor. It is capable of zoning for no or low-back pressure accumulation and is ideal for automation assembly applications within industries including medical devices, electronics, consumer goods among others.

The rollers are driven by a patent-pending, energy efficient linear gearbox that gives customers added flexibility with motor positioning and zoning. This allows for zone and slip roller operation. Simply removing a lower gear creates independent zones. The non-contact zone control provides simplified traffic control that eliminates pallet stops and costly pneumatic valves. Conversely, slip rollers can be used for full length runs with conventional pneumatic pallet stops. The rollers are easily accessible and can quickly be replaced without affecting the remaining portion of the conveyor.

To see how the ERT150 can help your product handling applications, please visit Dorner at WestPack Booth 5014 or contact us today!

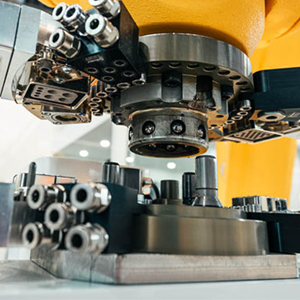

Stäubli Robotic tool changer for all robots

ATX West Booth #3310

Expanded payload range tool changers with modular design and quick delivery!  The ideal tool changing system for every robot that is ready to order, and delivered to you when you need it.  With the expansion of our MPS robot tool changers by 5 new models for payloads up to 80kg, we now offer you the ideal tool changing system for the entire payload range of all robot manufacturers up to 2500kg.



Schmalz Technology Development - The Right Gripper for Every Task

ATX West Booth #4974

In order to interact with their environment and perform the tasks, lightweight robots, like all industrial robots, depend on tools - and in many cases these are vacuum grippers. These form the interface to the workpiece and are therefore a decisive part of the overall system. With their help, the robots can pick up, move, position, process, sort, stack and deposit a wide variety of goods and components. Vacuum gripping systems allow particularly gentle handling of workpieces, a compact and space-saving system design and gripping from above. Precisely because the object does not have to be gripped, the vacuum suction cupenables gapless positioning next to each other.













Get RFQs on Die Casting, Stamping, and Extrusion With Xometry, Your Source for Custom Parts

ATX West Booth #1796

Xometry is your source for custom parts. Now, in addition to getting instant quotes on 3D Printing, CNC Machining, Sheet Metal, and Injection Molding, customers can create and send RFQs for die casting, stamping, and extrusion work to our nationwide network of pre-vetted manufacturers with just a 2D drawing. You will receive and be able to review responses from qualified shops within 7 days on an advanced web-based RFQ management platform. To learn more go directly to our site to issue and RFQ today. Stop wasting time managing RFQs through email and by phone, and start issuing RFQs at scale and in the cloud.

maxon motor's - The ultra-fast brushless DC motor

ATX West Booth #3241

maxon motor launches new high-speed motors that are configurable online. The new ECX brushless motors are quiet and feature very high efficiency. The ECX motors are available with diameters of 8, 16 and 19 mm achieving speeds of up to 120,000 rpm. They run very smoothly and are highly efficient. With maxon motor's online configurator, it is easy to put together a customized DC motor to include gearhead, encoder and controller. The customized motors are ready to ship in 11 days!











Zaber's X-LRQ-DE Series: High Precision Stages with Built-in Controllers and Linear Encoders

ATX West Booth #4527

Zaber's X-LRQ-DE Series of linear stages have high stiffness, load, and lifetime capabilities in a compact size. The integrated linear encoder combined with stage calibration provides high accuracy positioning over the full travel of the device. At 36 mm high, these stages are excellent for applications where a low profile is required. The X-LRQ-DE's innovative design allows speeds up to 205 mm/s and loads up to 100 kg. Like all Zaber products, the X-LRQ-DE Series is designed for easy set-up and operation.

ATI Industrial Automation - Manual Tool Changers

ATX West Booth #4615

Simpler, stronger, and more precise. ATI Industrial Automation has developed a series of Manual Tool Changers that provides a cost-effective solution for quickly changing tools by hand. They feature a unique design that combines high strength, excellent repeatability, and a patent-pending screw-cam locking mechanism with multiple fail-safe features, which resists vibration and prevents loosening. These robust and compact Manual Tool Changers can handle payloads up to 80 pounds (36 kg) and pass pneumatics and electrical signals.











Harmonic Drive Introduces New Lightweight Versions of Select Gearhead Products.

ATX West Booth #4455

Harmonic Drive LLC, a leader in high precision motion control introduces new lightweight versions of select gearhead products. The new gearheads are ideal for designs where weight is a critical factor. Building on the success of Harmonic Drive LLCs current gear units, new lightweight versions were the next logical evolution of the CS/ SH product lines. With weight reductions of 20-30% without any reduction in torque ratings, the Lightweight (LW) gear units provide exceptional torque density.
